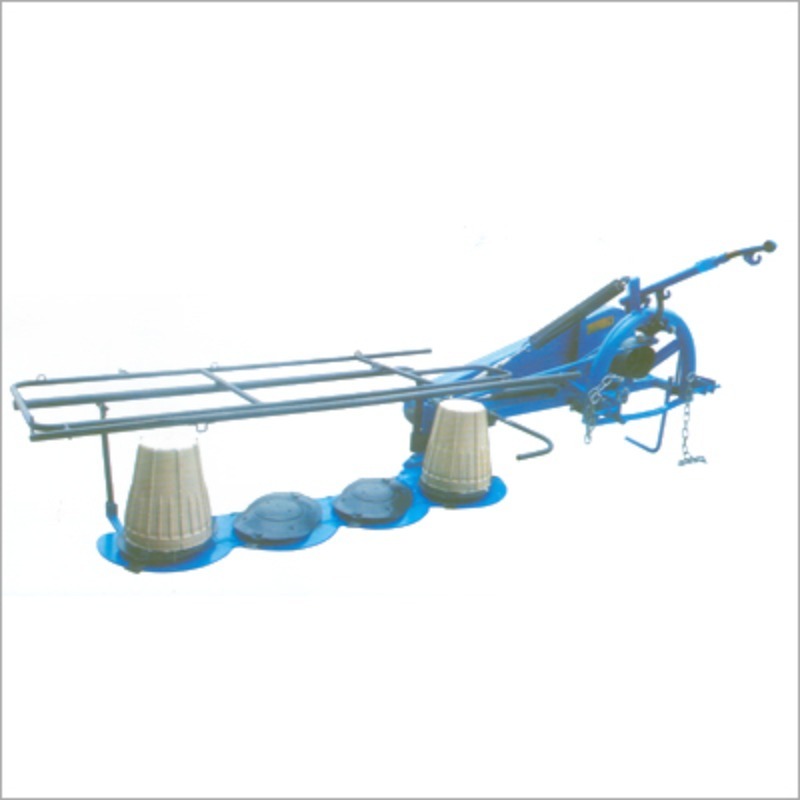

Italian Tractor Mounted Disc Mower

Get a Price/Quote

MOQ : 10 Units

Italian Tractor Mounted Disc Mower Specification

Noise Level
70-85 dB(A)

Features
Fast Cutting, Easy Mounting, Adjustable Cutting Height, Safety Guards, Foldable for Transport

Usage & Applications
Grass Cutting, Hay Preparation, Pasture Maintenance, Forage Harvesting

Shape
Rectangular Frame with Circular Discs

Tool Type
Agricultural Mower

Product Type
Mounted Disc Mower

General Use
Mowing grass, forage harvesting in agriculture

Capacity
2.1 - 3.0 acre/hr (depending on model & conditions)

Weight (kg)
330 - 400 kg (model dependent)

Type
Disc Mower (Mounted)

Drive Type
PTO (Power Take Off)

Power
40-80 HP Tractor Required

Power Source
Tractor PTO Driven

Transmission Type
Gear Drive with Belt

Engine Type
N/A (Tractor Driven)

Fuel Tank Capacity
N/A (Tractor Driven)

Start Method
PTO Engagement

Disc Diameter
430 mm 480 mm

Machine Speed
6-10 km/h (operating speed)

Production Output
High Efficiency Forage Cutting

Material
High-Quality Steel Frame, Wear-Resistant Disc Blades

Dimension (L*W*H)
3000 mm x 1200 mm x 900 mm (approx.)

Color
Red/Yellow (as per image)

Adjustment
Adjustable Cutting Angle and Height

Rotor Speed
2500-3000 RPM

Transport Mode
Hydraulic Lifting & Side Folding

Blade Material
Special Alloy Steel

Min. Required Tractor PTO RPM
540 RPM

Number of Discs
4, 5, or 6 Discs

Storage Position
Vertical Upright

Cutting Width
1.65 m / 2.1 m / 2.4 m (Model Dependent)

Safety Device
Overload Protection, Safety Guards, Protective Shields

Working Position
Right-side swing after unfolding

Suitable Crops
Alfalfa, Ryegrass, Wheat, Pasture Grasses

Mounting Method
Three-Point Linkage (Category II)

Number of Blades per Disc
2 Blades per Disc

Italian Tractor Mounted Disc Mower Trade Information

Minimum Order Quantity
10 Units

Supply Ability
1000 Units Per Month

Delivery Time
7-15 Days

About Italian Tractor Mounted Disc Mower

The disc mower was the logical next step after the sickle bar. On top of the cutter bar, however, several small discs rotate at high speeds. Two free-swinging blades are usually attached to each disc. Within the cutter bar, a shaft or gear drives the discs. The cutter bar moves along the ground, so the cutting height is controlled by it. Without any clogging, it can easily work on thick and lodged hay. The operator of this Italian tractor mounted disc mower can achieve the desired cutting speed.

Italian Tractor Mounted Disc Mower

Harvesting and Windrowing of Fodder Crops & Paddy Stubbles

Technical Specifications of Italian Tractor Mounted Disc Mower

Italian Tractor Mounted Disc Mower (404)
CROP	Fodder Crops & Paddy Stubbles
No. of Disc	4
Width of Cutterbar (CM)	170
Hydraulic Lift	Yes
PTO Shaft	6 Splines
PTO Power (HP)	35 or Above
Weight	300

Special Features of Italian Tractor Mounted Disc Mower

Tractor PTO Operated: Easily operated by Tractor PTO
Sharp Cutting: With 4 Discs and 8 Helical Cutting Blades.
Two Cones Conveyers: Works to make pathway after cutting fodder crops.
Hydraulic Lifting: To lift cutting bar during transportation & turning in field.
Beam Balancing Springs: To balance the machine during the cutting operation.
Special wear-proof slides: To protect the housing of cutting bar and discs at the time of operations.

Superior Crop Versatility

Designed to handle a wide range of crops including alfalfa, ryegrass, wheat, and pasture grasses, this disc mower is ideal for diverse forage harvesting needs. Its robust blades and adjustable settings ensure precise cutting across different grass types and conditions, making it a versatile choice for agricultural professionals.

Flexible Adjustment & Easy Mounting

The mower offers both adjustable cutting angle and height, allowing operators to tailor performance to field conditions. With three-point Category II linkage, installation on compatible tractors is straightforward. Hydraulic lifting and side folding simplify transport and setup, ensuring efficient mobility between fields.

Durable Build & Enhanced Safety Features

Constructed from high-quality steel with wear-resistant alloy blades, this disc mower is built for longevity. Overload protection, safety guards, and shields are integrated to safeguard users and maintain reliability, even under intensive use. These safety mechanisms help prevent accidents and machine damage during operation.

FAQs of Italian Tractor Mounted Disc Mower:

Q: How do I mount the disc mower on my tractor?

A: This disc mower can be easily mounted using Category II three-point linkage. Simply align the tractors attachment points with the mowers mounting arms, secure with provided pins, and connect the PTO shaft to engage power transmission from the tractor.

Q: What crops can this disc mower be used for?

A: The mower is designed for cutting a variety of forage crops, including alfalfa, ryegrass, wheat, and general pasture grasses, making it suitable for hay preparation, grass cutting, and overall pasture maintenance.

Q: When should I adjust the cutting height and angle?

A: Adjust the cutting height and angle depending on the crop type, growth stage, and field conditions. This ensures optimal yield and minimizes crop damage, especially when mowing different types of forage or wet fields.

Q: Where does the mower position during transport and storage?

A: For transport, the mower utilizes hydraulic lifting and side folding to move safely between locations. For storage, it can be placed in a vertical upright position, which saves space and protects the components from ground moisture.

Q: What is the process for starting and operating the mower?

A: After mounting, engage the PTO at a minimum of 540 RPM to start the mower. Select your desired operating speed (6-10 km/h), adjust height as necessary, and maintain the right-side swing working position by unfolding the unit for efficient forage cutting.

Q: What are the maintenance and safety benefits offered by this mower?

A: This machine comes equipped with overload protection, safety guards, and shields to minimize risk of injury and equipment damage. Regular maintenance, such as checking blade condition and lubrication, further ensures safe and reliable operation.

Q: What are the main benefits of using this disc mower in forage harvesting?

A: With high cutting efficiency, easy mounting, adjustable settings, and robust safety features, this mower increases productivity while reducing operator fatigue and downtime. Its high-capacity output and versatility make it a valuable tool for agricultural enterprises seeking reliability and performance.
